803-6CWH Surface Mounted Door Closers Manufacturer

Home / Our Products / Surface Mounted Door Closers / 803-6CWH Adjustable Delayed Closing Fire Door Closers
  • 803-6CWH Adjustable Delayed Closing Fire Door Closers
  • 803-6CWH Adjustable Delayed Closing Fire Door Closers

Color Option:

  • White

  • Silver

  • Gray

  • Black

  • Brown

  • Golden

803-6CWH
Surface Mounted Door Closers
CE Certified

Model
technology R&P
size according to EN1154 EN3－EN6
APPLICATIONS
door width [mm] ≤1400mm
max. door leaf weight [Kg] ≤ 120kg
LH/RH door One Side
double action door No
anti-corrosion (hours) 96
fire doors (≥ EN3) Yes
recommended use mid-duty interior/exterior doors
BODY & COVER PLATE
dimensions of Body
(length/width/depth) [mm]		 287MM(L)×60MM(W)×43.5MM(H)
dimensions of Installation
(length/width) [mm]		 135MM×25MM×46MM
body material Die Cast Aluminum
cover No
number of screws Optional
CERTIFICATION
EN 1154 (500.000 cycles) Yes
CE marking/ANSI Marking CE
voluntary 1,000,000 life cycle No
voluntary high/low temperature testing Yes
FEATURES
max. opening angle 120°(CWH)/180°(CW)
closing speed 120° - 15°(CWH)/180° - 15°(CW)
latching speed 15° - 0°
back check fix Yes
delayed action Yes
hold-open Yes
adjustable closing force Yes

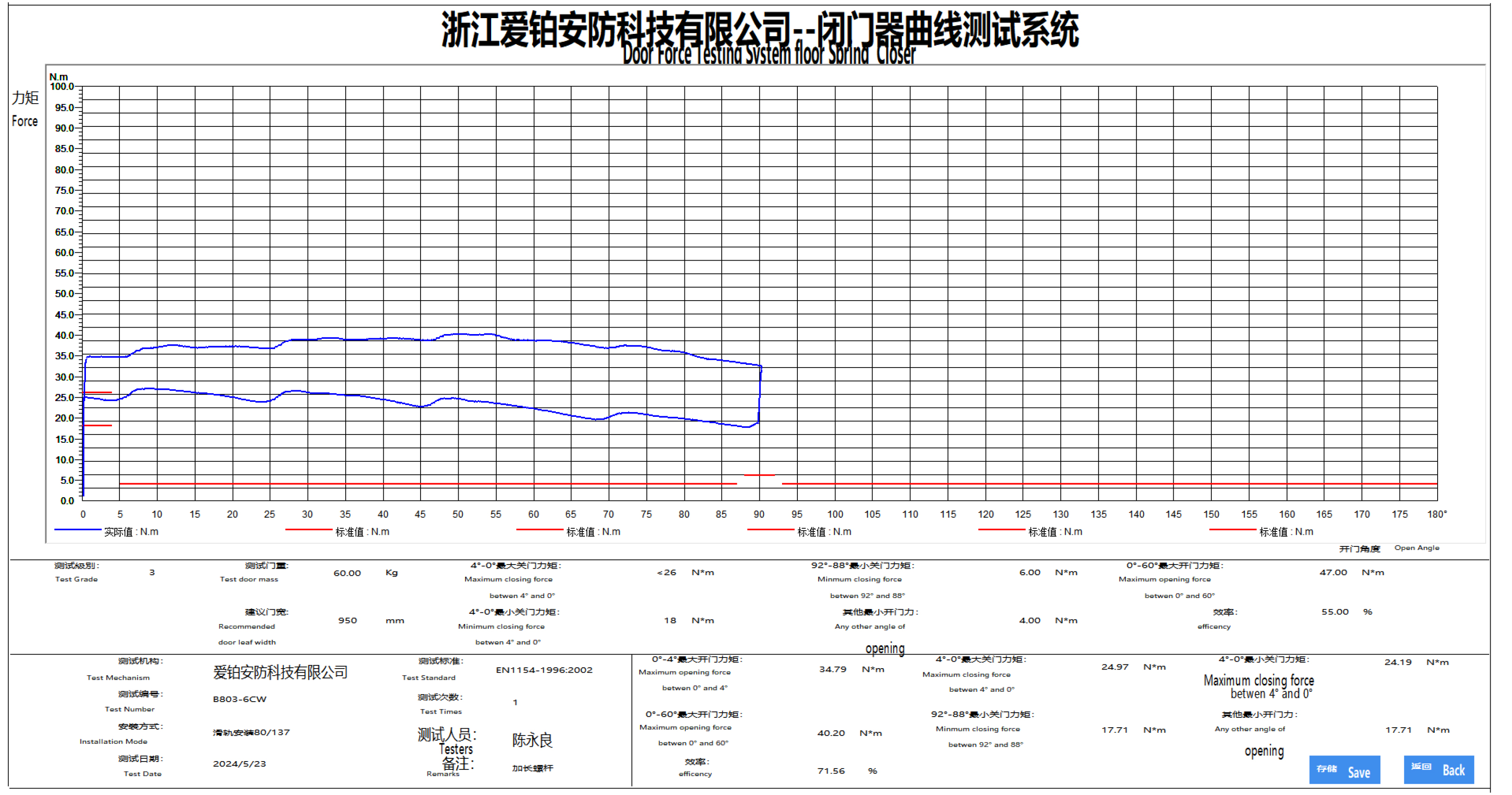

Performance Curve
Manual
Installation Video
