802-4BWH Surface Mounted Door Closers Manufacturer

Home / Our Products / Surface Mounted Door Closers / 802-4BWH Fire Door Closers With Independent Buffer Function
  • 802-4BWH Fire Door Closers With Independent Buffer Function
  • 802-4BWH Fire Door Closers With Independent Buffer Function

Color Option:

  • White

  • Silver

  • Gray

  • Black

  • Brown

  • Golden

802-4BWH
Surface Mounted Door Closers
CE Certified

Model
technology R&P
size according to EN1154 EN2－EN4
APPLICATIONS
door width [mm] ≤1100mm
max. door leaf weight [Kg] ≤ 80kg
LH/RH door One Side
double action door No
anti-corrosion (hours) 96
fire doors (≥ EN3) Yes
recommended use mid-duty interior/exterior doors
BODY & COVER PLATE
dimensions of Body
(length/width/depth) [mm]		 227MM(L)×60MM(W)×43.5MM(H)
dimensions of Installation
(length/width) [mm]		 135MM×25MM×46MM
body material Die Cast Aluminum
cover No
number of screws Optional
CERTIFICATION
EN 1154 (500.000 cycles) Yes
CE marking/ANSI Marking CE
voluntary 1,000,000 life cycle Optional
voluntary high/low temperature testing Yes
FEATURES
max. opening angle 120°(BWH)/180°(BW)
closing speed 120° - 15°(BWH)/180° - 15°(BW)
latching speed 15° - 0°
back check fix Yes
delayed action No
hold-open Yes
adjustable closing force Yes

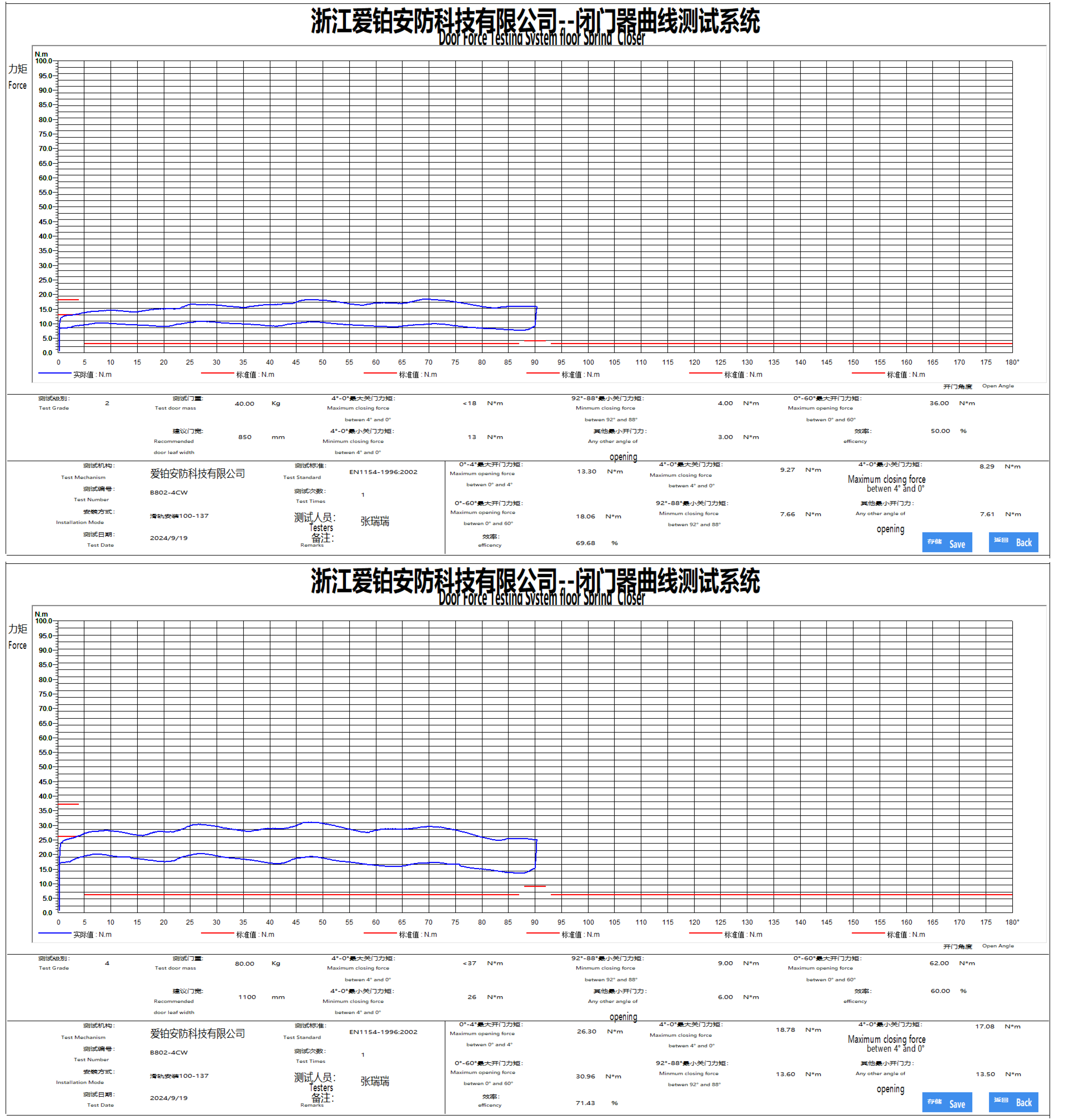

Performance Curve
Manual
Installation Video
