AB203-5 Concealed Door Closers Manufacturer

Home / Our Products / Concealed Door Closers / AB203-5 Fireproof Adjustable Concealed Door Closers

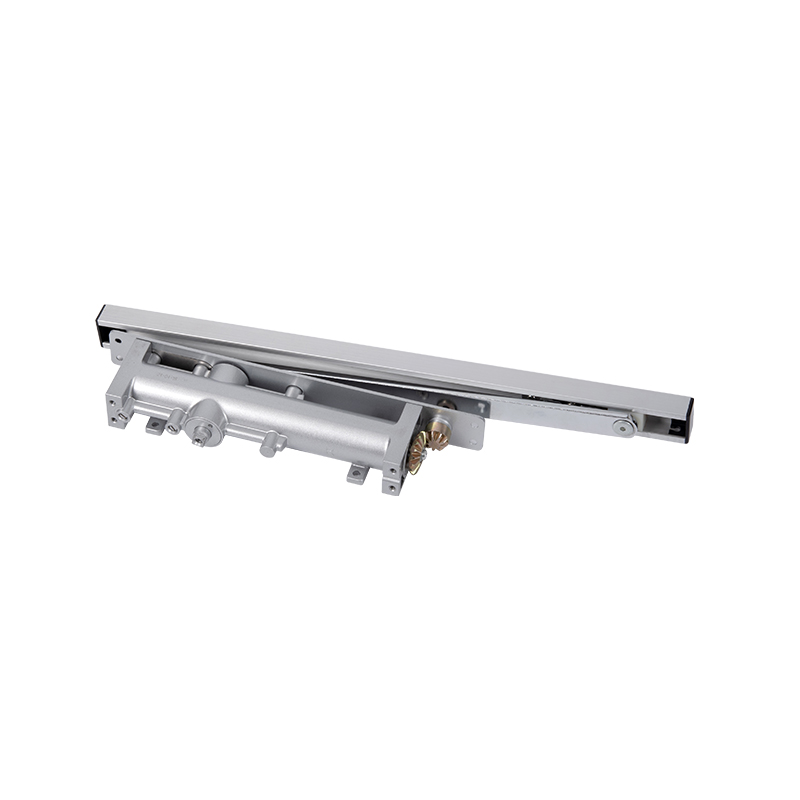

  • AB203-5 Fireproof Adjustable Concealed Door Closers
  • AB203-5 Fireproof Adjustable Concealed Door Closers

Color Option:

  • White

  • Silver

  • Gray

  • Black

  • Brown

  • Golden

AB203-5
Concealed Door Closers
CE Certified

Model
technology R&P
size according to EN1154 EN3 － EN5
APPLICATIONS
door width [mm] ≤1250mm
max. door leaf weight [Kg] ≤100kg
LH/RH door One Side
double action door No
anti-corrosion (hours) 96
fire doors (≥ EN3) Yes
recommended use mid-duty interior/exterior doors
BODY & COVER PLATE
dimensions of Body
(length/width/depth) [mm]		 230MM(L)×37MM(W)×81MM(H)
dimensions of Installation
(length/width) [mm]		 19MM×285MM
body material Die Cast Aluminum
cover No
number of screws Optional
CERTIFICATION
EN 1154 (500.000 cycles) Yes
CE marking/ANSI Marking CE
voluntary 1,000,000 life cycle No
voluntary high/low temperature testing Yes
FEATURES
max. opening angle 120°
closing speed 120° - 15°
latching speed 15° - 0°
back check fix Optional
delayed action No
hold-open Yes
adjustable closing force Yes
Performance Curve
Manual
Installation Video
